Submersible Sewage Pump
Power: 4kw-210kw (5hp-300hp)
Flow: 10-3500m3/h
Head: 6m-200m
Material: Cast iron, SS304, SS316, SS316L
Introduction: WhatsApp
Submersible sewage pump is power irrigation equipment united by the motor and the pump, especially the swirling impeller and double-channel impeller matched with spiral type centrifugal pump body, which have extremely strong drainage capacity.
The motor part adopts mechanical seals of hard corrosion double end face ceramic, which have very good effect of seepage prevention, its protection level is IP68 and designed insulation class is grade F, motor running more safe, reliable, and long service life, convenient installation.

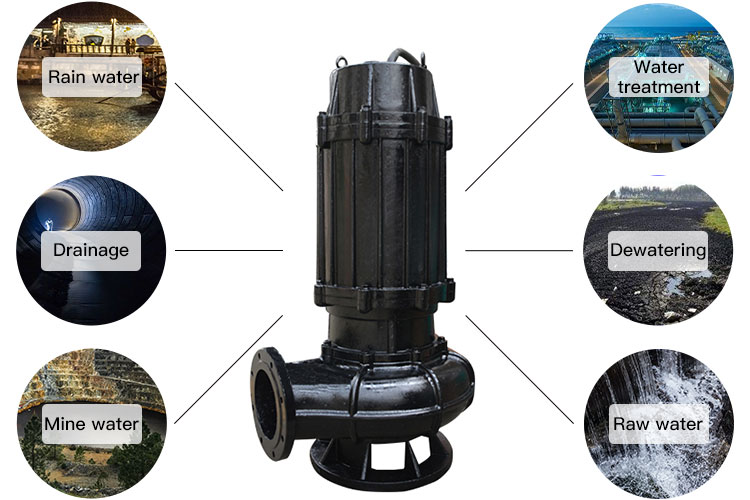

Application: WhatsApp
Wastewater treatment and reuse
Sewage treatment
Industrial waste water
Flood control
Dewatering
Municipal wastewater disposal
Parameters: WhatsApp
Model | Outlet diameter | Flow | Head | Power | |
WQ type | mm | m3/h | m | kw | hp |
65WQ15-9-1.1 | 65 | 15 | 9 | 1.1 | 2 |
50WQ9-22-2.2 | 50 | 9 | 22 | 2.2 | 3 |
40WQ10-35-3 | 40 | 10 | 35 | 3 | 4 |
80WQ40-15-4 | 80 | 40 | 15 | 4 | 5 |
100WQ65-18-5.5 | 100 | 65 | 18 | 5.5 | 7 |
100WQ100-15-7.5 | 100 | 100 | 15 | 7.5 | 10 |
150WQ145-9-7.5 | 150 | 145 | 9 | 7.5 | 10 |
100WQ100-25-11 | 100 | 100 | 25 | 11 | 15 |
150WQ130-15-11 | 150 | 130 | 15 | 11 | 15 |
200WQ300-7-11 | 200 | 300 | 7 | 11 | 15 |
100WQ100-30-15 | 100 | 100 | 30 | 15 | 20 |
150WQ100-30-15 | 150 | 100 | 30 | 15 | 20 |
200WQ220-12-15 | 200 | 220 | 12 | 15 | 20 |
100WQ100-35-18.5 | 100 | 100 | 35 | 18.5 | 25 |
150WQ180-20-18.5 | 150 | 180 | 20 | 18.5 | 25 |
200WQ250-15-18.5 | 200 | 250 | 15 | 18.5 | 25 |
250WQ400-7-18.5 | 250 | 400 | 7 | 18.5 | 25 |
100WQ100-40-22 | 100 | 100 | 40 | 22 | 30 |
150WQ180-25-22 | 150 | 180 | 25 | 22 | 30 |
200WQ300-15-22 | 200 | 300 | 15 | 22 | 30 |
250WQ450-7-22 | 250 | 450 | 7 | 22 | 30 |
150WQ227-27-30 | 150 | 227 | 27 | 30 | 40 |
150WQ160-45-30 | 150 | 160 | 45 | 30 | 40 |
200WQ400-13-30 | 200 | 400 | 13 | 30 | 40 |
250WQ600-9-30 | 250 | 600 | 9 | 30 | 40 |
300WQ850-7-30 | 300 | 850 | 7 | 30 | 40 |
150WQ200-30-37 | 150 | 200 | 30 | 37 | 50 |
200WQ350-25-37 | 200 | 350 | 25 | 37 | 50 |
250WQ600-12-37 | 250 | 600 | 12 | 37 | 50 |
300WQ800-10-37 | 300 | 800 | 10 | 37 | 50 |
350WQ1000-8-37 | 350 | 1000 | 8 | 37 | 50 |
150WQ180-45-45 | 150 | 180 | 45 | 45 | 60 |
200WQ400-25-45 | 200 | 400 | 25 | 45 | 60 |
300WQ800-12-45 | 300 | 800 | 12 | 45 | 60 |
350WQ1200-8-45 | 350 | 1200 | 8 | 45 | 60 |
200WQ400-30-55 | 200 | 400 | 30 | 55 | 75 |
250WQ600-20-55 | 250 | 600 | 20 | 55 | 75 |
300WQ800-15-55 | 300 | 800 | 12 | 55 | 75 |
350WQ1100-10-55 | 350 | 1100 | 10 | 55 | 75 |
250WQ600-25-75 | 350 | 600 | 25 | 75 | 100 |
300WQ800-20-75 | 300 | 800 | 20 | 75 | 100 |
350WQ1300-12-75 | 350 | 1300 | 12 | 75 | 100 |
