| General information | |

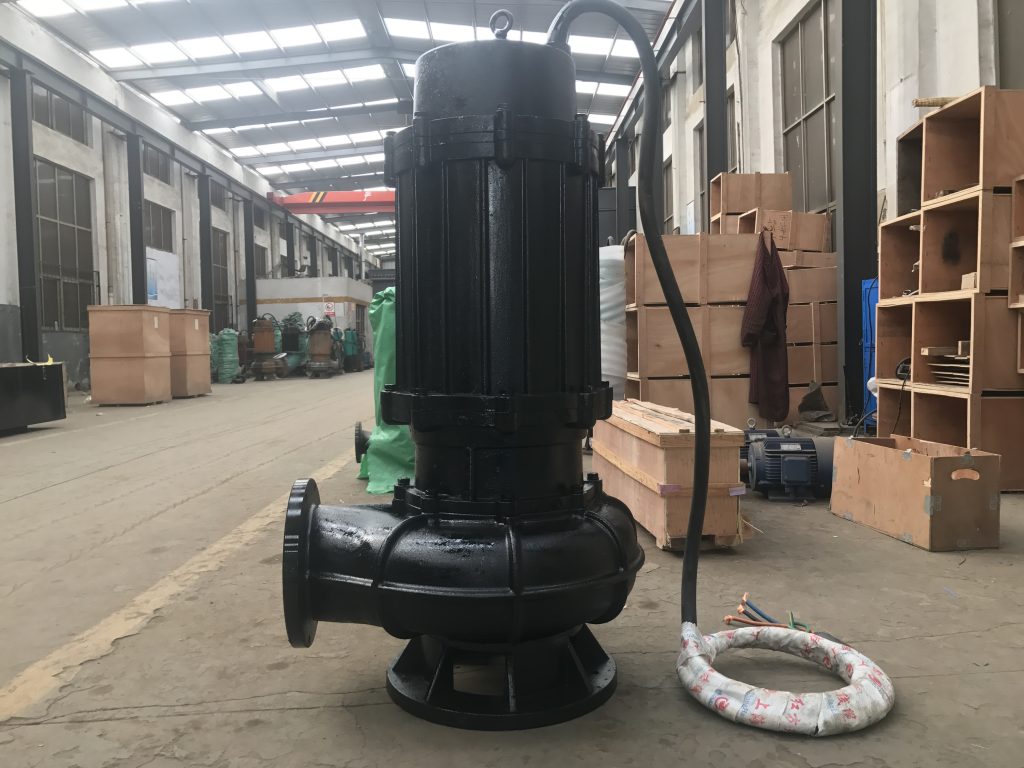

| Product name: | Submersible Pump |
| Product No.: | 150WQ227-27-30KW |
| Description | Value |
| Technical: | |
| Required Flow | 1000 US GPM |
| Head | 89.03ft |
| Type of Impeller | Semi Open |
| Impellor Stages | single |
| Shaft Seal | Mechanical seal |
| Cooling Type | Oil cooling |
| Moisture sensor | Moisture sensor |
| Performance Data | Point 1: H=120ft, Q=400GPM |
| Point 2:H=60ft, Q=1,600GPM | |
| Maximum particle size | 85 mm |
| Main Materials | |
| Impeller | Cast Iron |
| Shaft | Stainless Steel |
| Bearing | Cast Iron |
| Motor | Cast Iron |
| Pump housing | Cast Iron |
| Installation | |
| Location | Outdoor/Indoor |
| Flange Standard | DIN |
| Pump Inlet | DN 150 |
| Pump Outlet | DN 150 |
| Pressure Rating | PN10 |
| Maximum submerged depth | 20m |
| Inst dry/wet | Submerged |
| Installation | Vertical |
| Liquid | |
| Pumped Liquid | All Newtonian Liquid |
| Maximum Temperature ambient | 40℃ |
| Liquid Temp range | 0 to 40℃ |
| Density | 998.2kg/m |
| Viscosity | 3-6pas |
| corrosive | no |
| Electrical Data | |
| Number of Poles | 4 |
| Power input – P1 (kw) | 27.2 |
| Rated Power – P2 (kw) | 24.5 |
| Mains Frequency | 60hz |
| Rated Voltage | 3 phase, 380-480/660-690V |
| Start Method | star/delta |
| Rated Speed | 1777rpm |
| Insulation Class (IEC 85) | H |
| Enclosure class (EIC 34-5) | IP68 |
| Voltage Tolerance | -100 |
| Starting current (A) | 379/174 |
| Motor efficiency at full load: | 90% |
| Motor efficiency at 3/4 load: | 89% |
| Motor efficiency at 1/2 load: | 88% |
| Max starts per. hour: | 20 |
| Rated current: | 52-41/30-29 A |
| Maximum current consumption: | 43 A |
| Cos phi 1/1 | 0.80 |
| Cos phi 1/2: | 0.66 |
| Cos phi 3/4: | 0.75 |
| Cable Type | S1BN8-F |
| Cable length | 10m |
| Rated current at no load: | 17.6 A |
| Winding resistance: | 0.390 Ohm |
| Explosion proof | no |
