Main products: Electric Submersible Pump for pumping clean water, hot water and sea water with bronze, SS304, SS316, SS316L, Dupex stainless/SS904L; Mine Submersible Pump/Submersible Motor/Sewage Submersible Pump/Slurry Submersible Pump/Fountain Submersible Pump/Axail Flow Submersible Pump/Surface Centrifugal Water Pump. Related business: kinds of water pipes, cables, control panels, inverter and other pump spare parts.
Thailand drilling company is a large modernized drilling enterprise for various deep wells in Thailand. They would like to quote 2-7/8” or 3-1/2” tubing for the well site, 75 – 80 m3/hr flow rate, water well depth around 150m submersible pump.

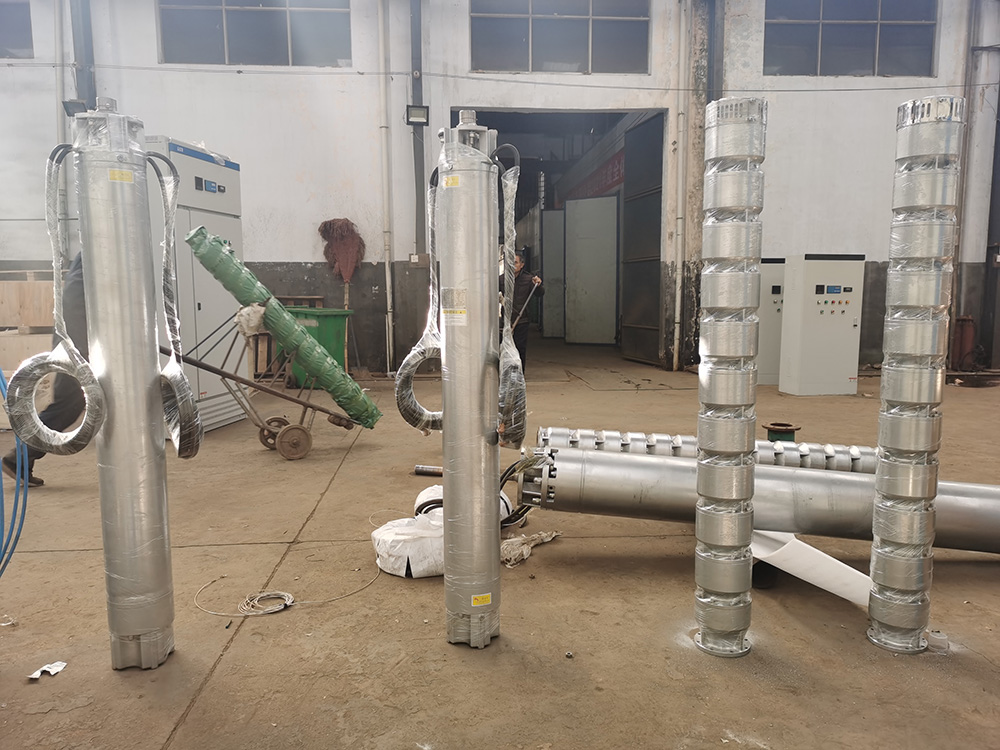

Our factory provides them four sets of 200QJH80-160-55kw for the drinking water lifting, stainless steel 304 material, corrosive resistant and lower price.
Type: 200QJH80-160-55kw
1. Flow rate: 80m3/hr
2. Head meters: 160m
3. Motor power: 55kw 75hp
4. Power supply: 3phase 380v 50hz
5. Outlet diameter: 100mm
6. Pump diameter: 184mm
7. Pump material: SS304
8. Adapter: One side connect with pump flange, another side with PH16 standard connection (3-1/2″, 4″ and 4-1/2″)
9. Submersible power cable: submersible type, cooper conductor, 3*50mm, nature rubber material insulation layer.
Adapter: One side connect with pump flange, another side with PH16 standard connection as (3-1/2″, 4″ and 4-1/2″)
